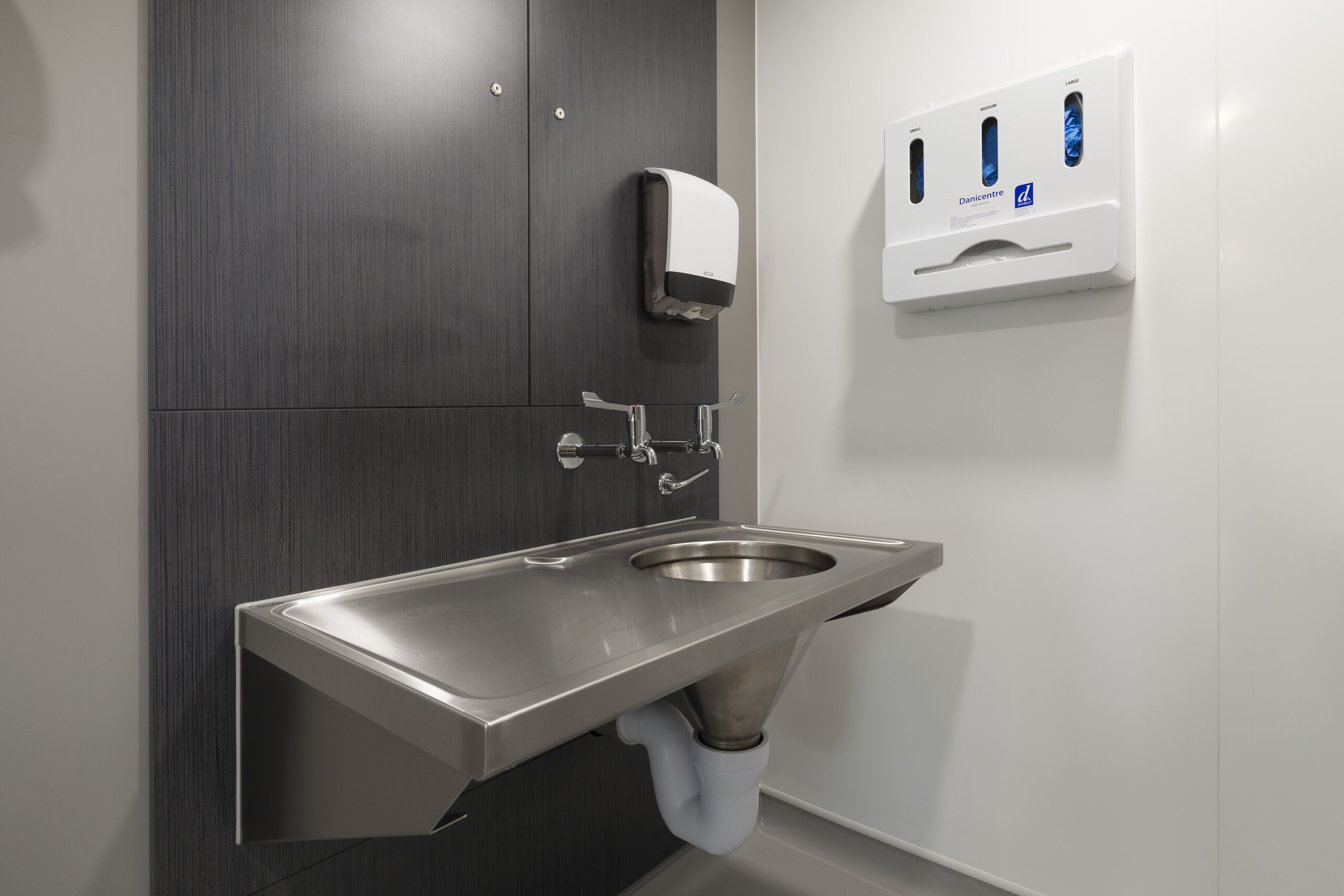

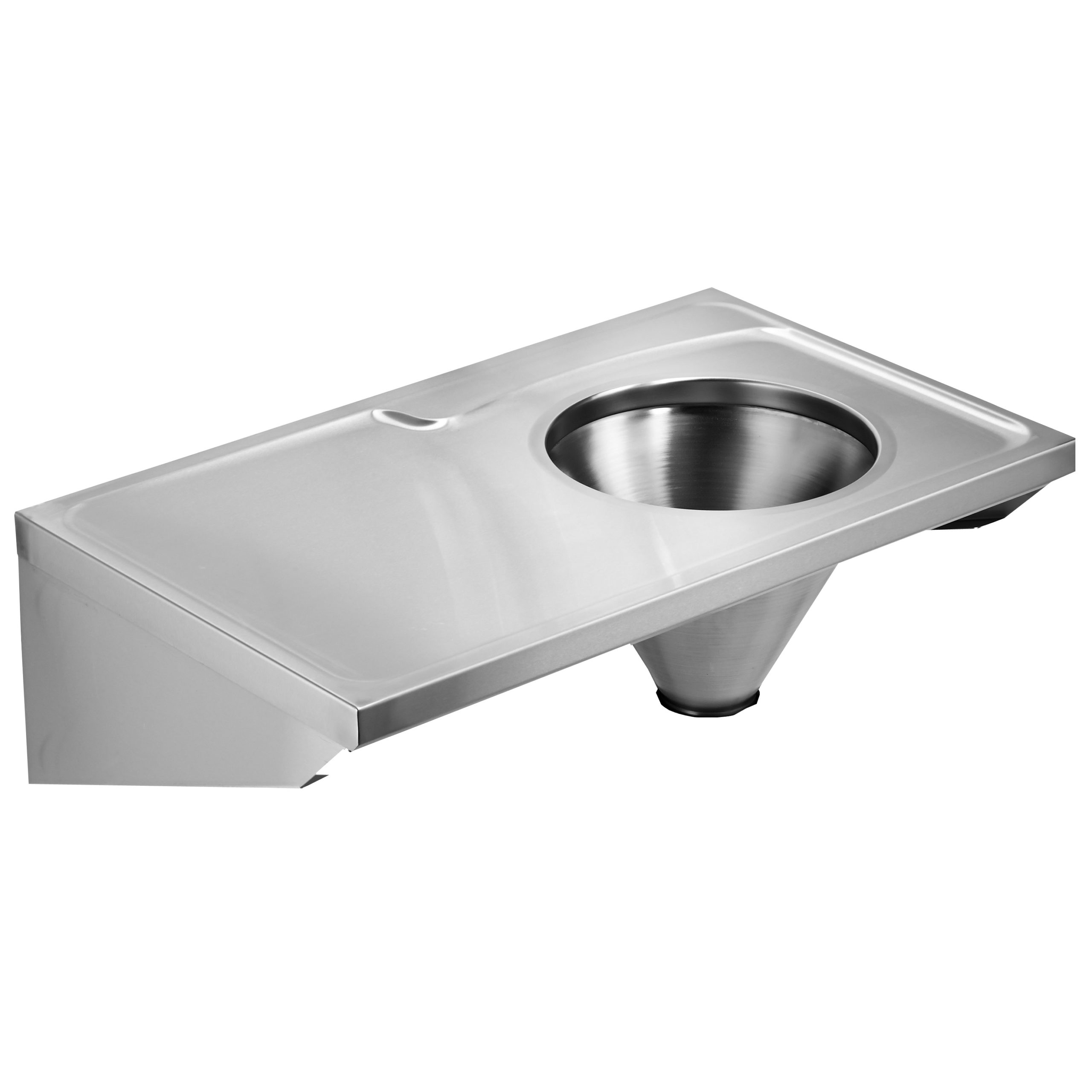

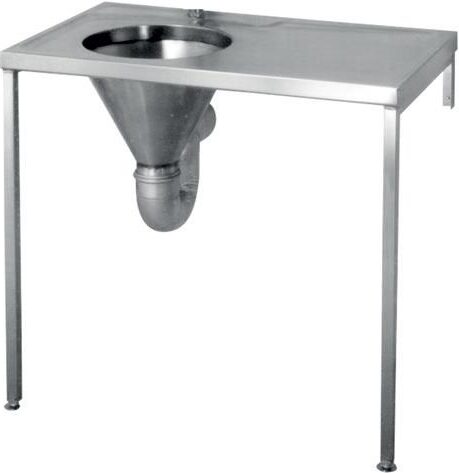

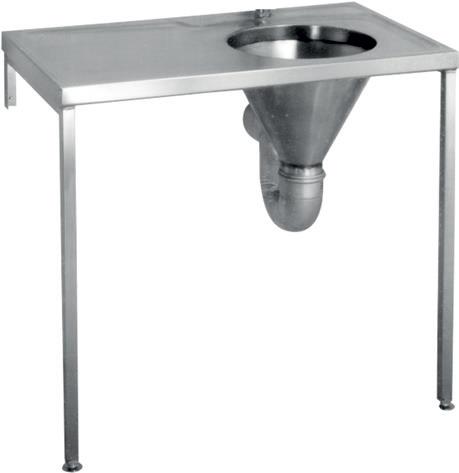

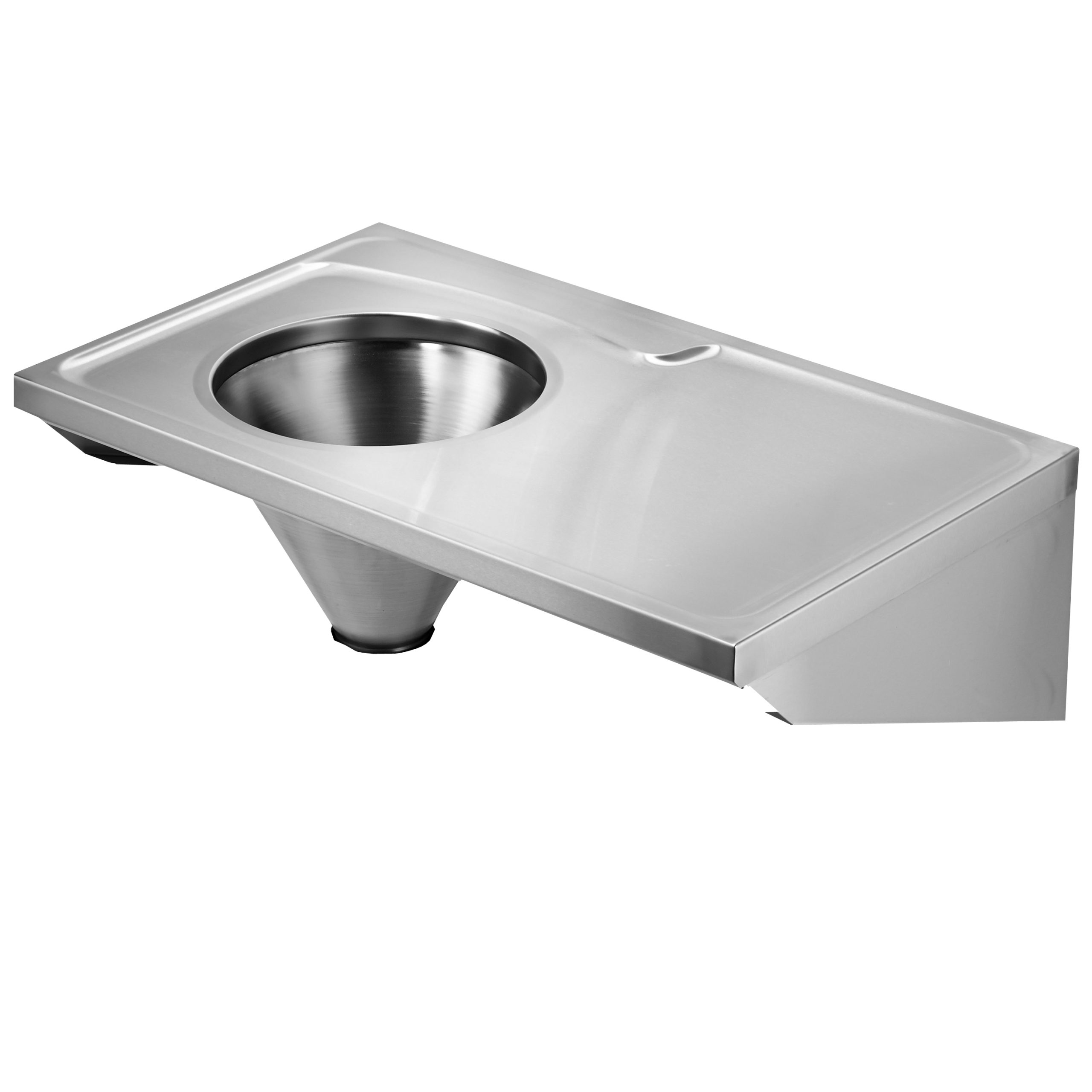

A DUH hospital disposal unit manufactured from 1.2mm thick, grade 1.4301 (304) stainless steel with a satin polish finish. The top is turned down on all four edges and incorporates a wet area recess. Fitted with a sluice hopper at one end, the hopper has a 110mm dia. outlet which can accept a Plastic or Stainless steel trap, available as an extra. 9 litre capacity plastic cistern with plastic downpipe is available, these are fitted with a 13mm HP brass valve, plastic float and CP metal flushing lever handles. The unit should only be fed from a cistern or tank water supply. L or R after the code number refers to the handing of the drainer ie. left or right when facing front of unit. Unit can be mounted with either stainless steel cantilever wall brackets, front leg supports (working height of 900mm) with adjustable feet or supplied without supports.

HTM 64 STANDARD

For additional items;

• White plastic P trap – SKU: B4042
• 9 Litre plastic cistern – SKU: SA22016L/R
• Plastic Downpipe – SKU: B3022
• 38mm Flush grated waste – SKU: F2068
• S/Steel removable outlet grating 110mm – SKU: SA26542N
• Stainless steel support legs – SKU: SA26524
• Stainless steel wall brackets – SKU: SA2652
