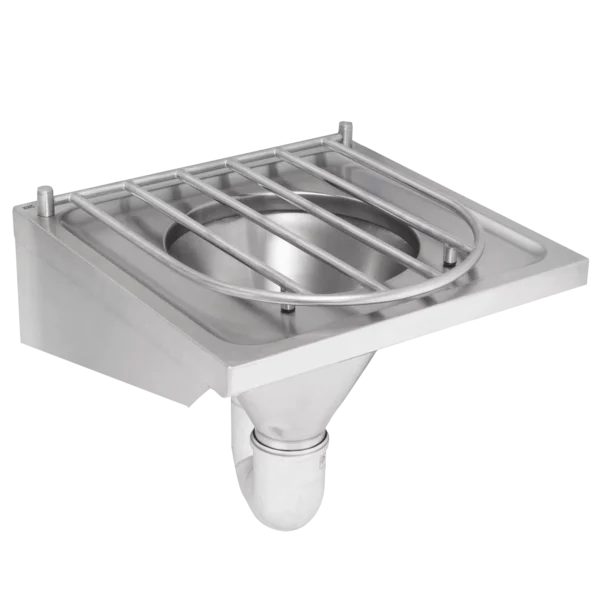

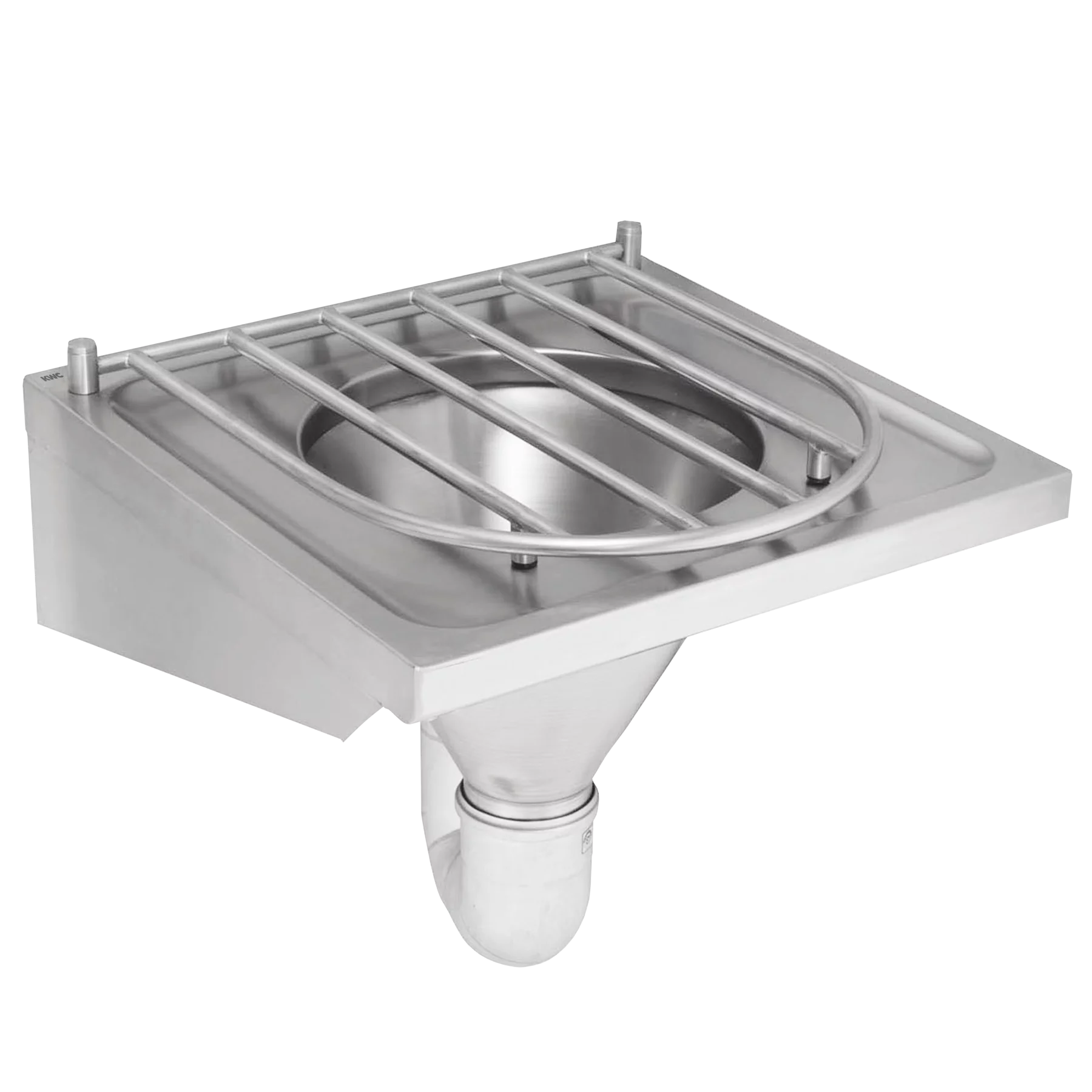

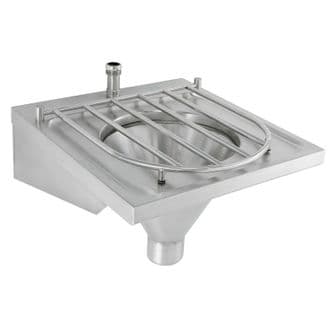

A wall hung domestic services disposal unit manufactured from 1.2mm thick, grade 1.4301 (304) stainless steel with satin polish finish. Incorporating a sluice hopper which is suitable for duct mounted services. The hopper has a 110mm dia. outlet which can accept a P trap, available as an extra. For installations where the cistern is duct mounted a plastic cistern with plastic downpipe is available. Plastic cistern have a 9 litres capacity and are fitted with 13mm HP brass valve, plastic float and CP metal flushing lever handles. The unit should only be fed from a cistern or tank water supply. The unit is fixed to the wall using two cantilevered brackets, available as extra. Wall fixings are not supplied.

Suitable for duct mounting
